Measuring Tapes
The Komelon measuring tapes stand out due to various features and are divided into four different groups: Power Tape, Magnetic Tape, Stainless Steel Tape and Self-lock Tape.
Power Tape features
Magnetic Tape features
- Powerblade for maximized blade durability
- High Visibility blade for easy reading and both sides printed
- Impact absorbing rubber protects case and button
- Nylon coating helps the scale stays longer
- Ergonomically designed chrome case provides easy to hold grip
- Superior internal mechanism provides smooth operation
- Bottom button to pause the blade in use
- Powerblade for maximized blade durability
- High Visibility blade for easy reading and both sides printed
- Magnetic tip for easy one person measurement
- Nylon coating helps the scale stays longer
- Impact absorbing rubber protects case and button
- Extra wide nylon coating blade. (32mm)
- Ergonomically designed impact absorbing rubber jacket protects case and tip
Stainless Tape features
Selflock Tape features
- Stainless steel for improved rust resistance
- Power Blade for maximized blade durability
- Both side printing for precise marking
- Nylon coating helps the scale stays longer
- Impact absorbing rubber protects case and button
- Powerblade for maximized blade durability
- Both side printing for precise marking
- Automatic blade lock. Push button retrieval
- High Visibility blade for simple reading
- Magnetic tip for easy one person measurement
- Nylon coating helps the scale stays longer
- Ergonomically designed case provides easy to hold grip

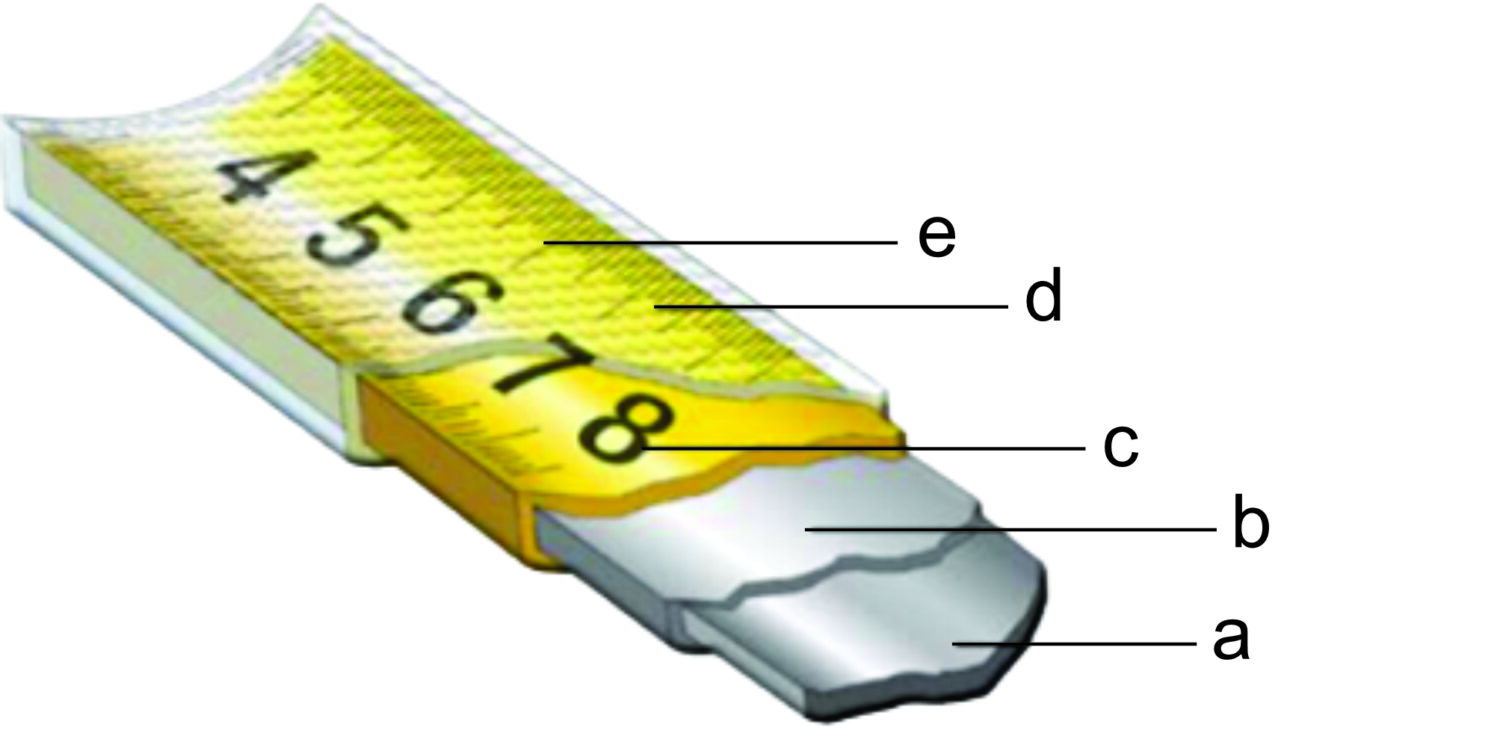

Blade structure of Komelon Power tapes
- [a] High grade carbon steel
- [b] Anti-rust phosphate surface treatment
- [c] Strong adherent baked painting
- [d] 1st transparent nylon coating
- [e] 2nd though embossed finish

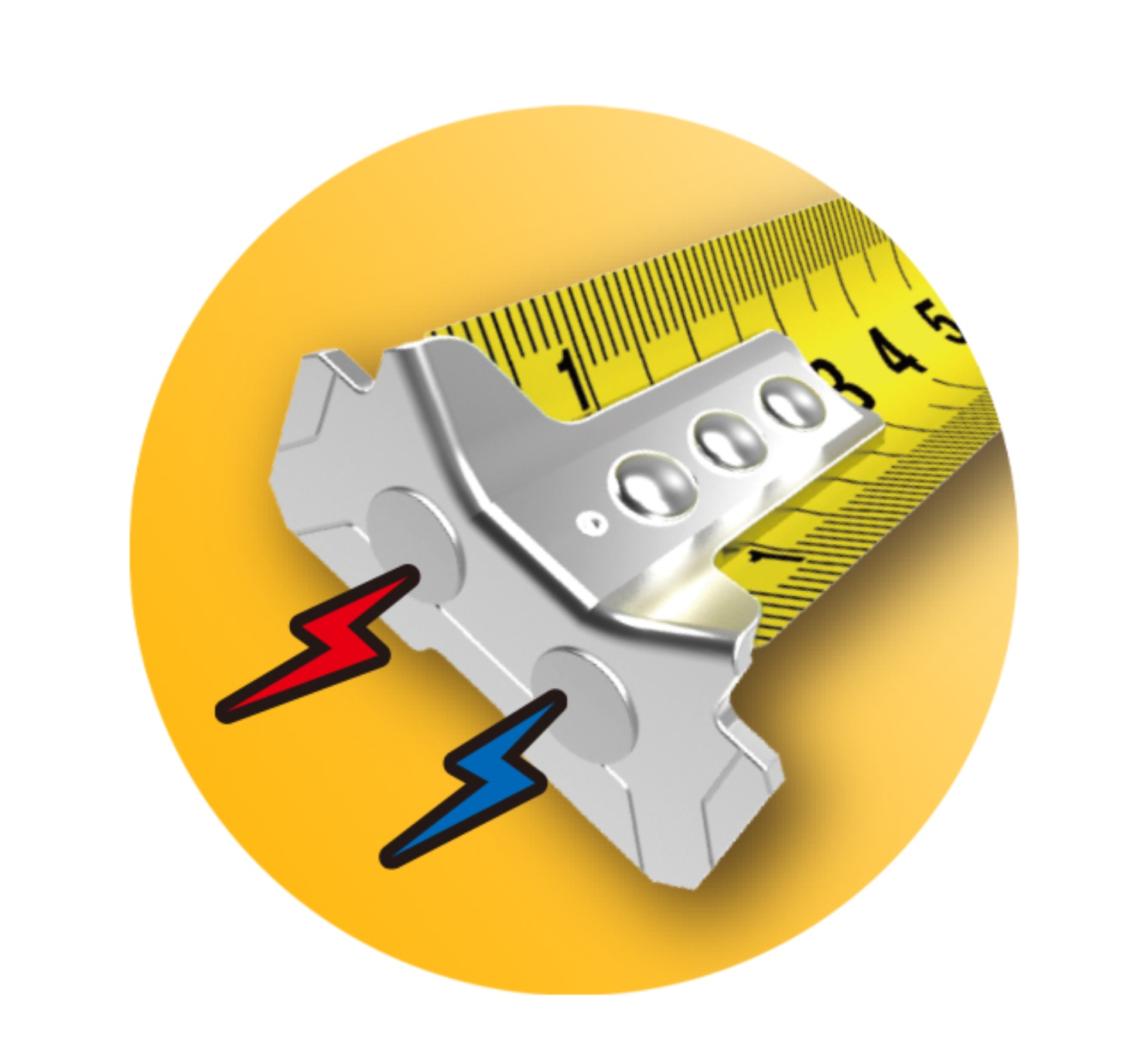

Magnetic Hook
The world’s first exclusive manufacturer of the magnetic hook, Komelon has developed the magnetic hook for users for their convenience when measuring distance at any circumstances. Magnetic hook holds firmly on most metal surfaces and stays fixed horizontally and vertically. (USA Patent PAT 6678967 D486086). Magnetic Force may slightly differ depending on the types of metal.

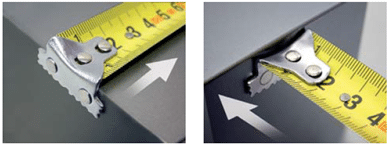

Zero Commencement of Magnetic Hook –
should be accurate on both inside and outside (when the tape is pushed and pulled).
When pulling the magnetic hook, please deduct 1.6mm from your measurement.
Accuracy on Komelon’s Measuring Tape
◼︎ Convex/Steel measuring tape
⌖ Accuracy tolerance: ±(0.2+0.1L)mm. L = unit of measurement (m)
| Grade (m) | 1 | 2 | 3 | 5 | 8 | 10 |
| JIS (mm) | ±0.3 | ±0.4 | ±0.5 | ±0.7 | ±1 | ±1.2 |
◼︎ Fiberglass tape
⌖ Accuracy tolerance: ±(0.6+0.4L)mm. L = unit of measurement (m)
| Grade (m) | 10 | 15 | 20 | 30 | 50 | 100 |
| JIS (mm) | ±4.6 | ±6.6 | ±8.6 | ±12.6 | ±20.6 | ±40.6 |
Komelon Magnetic tapes with True Zero Measurement
Komelon high-quality tape measures provide accurate readings for both inside (e.g., measuring within a box or between two walls) and outside (e.g., measuring the length of an object) measurements.
Superior blade extension of Komelon tapes
| Blade width | Horizontal Stand-out | Vertical Stand-out | Vertical Stand-out (back reading) |
|---|---|---|---|
| 13mm | 1.1m | 1.7 | |
| 16mm | 1.5m | 2.2 | |
| 19mm | 1.8m | 2.9 | 3.6m |
| 25mm | 2.4m | 4.1 | 6.0m |
| 27mm | 2.7m | 4.3 | 6.5m |

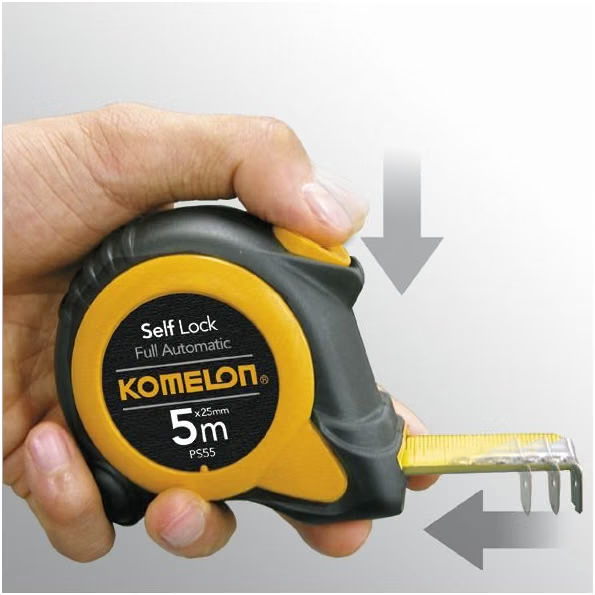

Self-locking feature
Automatically stops when the blade is pulled out and retracts by pushing the button.
The Self Lock Series features a unique self locking mechanism that allows the blade to extend smoothly as well as a push button release that insures complete control when retracting the blade.
